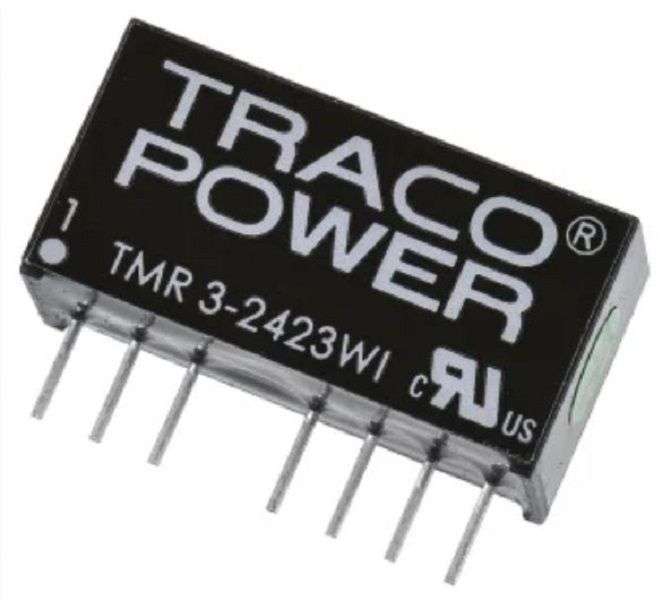

Traco Power (TMR 3-2423WI) Isolated Through Hole DC/DC Converter 15V, 100mA

Isolated Through Hole DC/DC Converter, ITE, 4:1, 3 W, 2 Output, 15 V, 100 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 3WInput Ratio: 4:1Output Voltage - Output 1: 15VOutput Current - Output 1: 100mANo. of Outputs: 2 OutputOutput Voltage - Output 2: -15VOutput Current - Output 2: 100mAOutput Regulation: RegulatedIsolation Voltage: 1.6kVInput Voltage DC Min: 9VInput Voltage DC Max: 36VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: SIPDC / DC Converter Mounting: Through HoleWidth: 9.2mmHeight: 11.1mmDepth: 21.8mmProduct Range: TMR 3WI SeriesProduct OverviewThe TMR 3-2423WI is a 2-output board-mount isolated DC to DC Converter withregulated output voltage and ultra wide 4:1 input voltage range. The TMR-3WIseries 3W isolated DC/DC converter comes with a small footprint and excellentefficiency. The very compact dimensions of this converter make it an idealsolution for many space critical applications.Highest power densityHigh efficiency up to 82%Excellent load and line regulationShort-circuit protectionRemote on/off control-40 to +85°C Operating temperature rangeApplicationsPower Management
