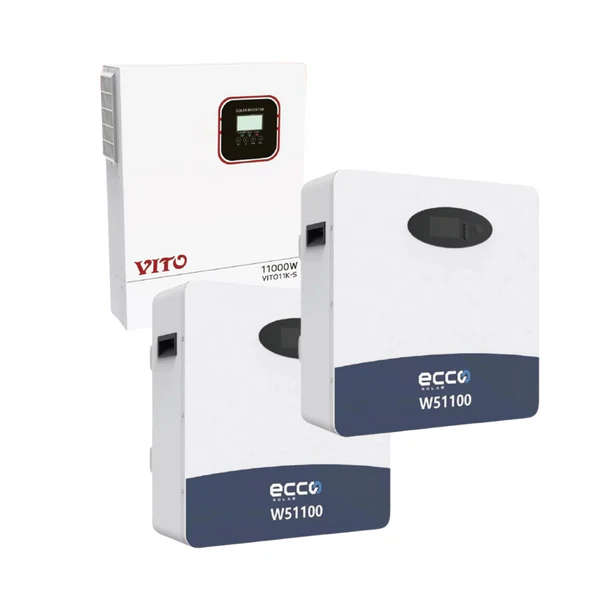

Vito 11KVA / 11 000W MPPT Hybrid Inverter Pure Sine Wave + 2 x 5.12kWh Ecco lithium Battery (WALL...

Vito 11kW Hybrid Inverter MPPT + 2 x 5.12kWh Ecco Batteries |

High-Efficiency Power Solution for Industrial & Commercial Applications

The Vito 11kW Hybrid Inverter MPPT coupled with 2 x 5.12kWh Ecco Lithium Batteries provides a powerful and adaptable energy management system for demanding installations. Built with industrial-grade components, this system delivers efficient power conversion and storage capabilities suitable for off-grid setups, backup systems, and commercial use.

Key Features

• Robust Power Management: Combines inverter, MPPT solar charger, and battery charger for uninterrupted energy supply.

• Pure Sine Wave Technology: Ensures clean, stable power delivery, ideal for sensitive industrial equipment.

• Advanced MPPT Controller: Maximizes energy harvest from solar arrays, enhancing system efficiency.

• Comprehensive Safety Protections: Includes overload, short-circuit, and over-temperature protection for reliable operation.

• Industrial-Grade Design: Sturdy construction with wall-mounted lithium batteries for space-saving installations.

• Communication Support: RS485, RS232, CAN interfaces for seamless integration with monitoring systems.

Technical Specifications

• Inverter Rated Power: 5500W x 2 (11kW total)

• MPPT Voltage Range: 60Vdc - 500Vdc

• Max PV Array Open Circuit Voltage: 500Vdc

• Battery Capacity: 2 x 5.12kWh Ecco Lithium Batteries (10.24kWh total)

• Battery Voltage: 51.2V (100Ah each)

• Maximum Continuous Output Power: 5500W

• Maximum Momentary Output Power: 7500W

• Weight: Inverter - 14.8 kg, Battery - 49 kg each

Description:

The ECCO 5.12kWh 51.2V 100Ah Lithium Iron Phosphate (LiFePO4) Battery is a reliable and long-lasting energy storage solution designed for solar, backup power, and off-grid applications. Engineered for high performance and safety, this wall-mounted battery is compact, easy to install, and compatible with multiple inverter brands.

Key Features:

• Efficient Energy Storage: 5.12kWh capacity with 100Ah nominal rating for stable and reliable power.
• Space-Saving Wall-Mount Design: Compact form factor for a clean, efficient installation.
• Advanced LiFePO4 Battery Technology:
  • Ensures longer cycle life with up to 20x the lifespan of lead-acid batteries.
  • Safer chemistry reduces the risk of combustion or explosion.
• High Power Output:
  • Maximum Continuous Output Power: 5,500W
  • Peak Output Power: 7,500W
• Scalability & Compatibility:
  • Supports up to 16 parallel connections for expandable storage capacity.
  • Compatible with multiple inverter brands for seamless integration.
• Durability & Safety:
  • IP54-rated enclosure for protection against dust and water splashes.
  • Built-in short circuit protection, overcharge/discharge safeguards, and thermal management.
• Optimized Charging & Discharging:
  • Bulk Charge Voltage: 56.4-56.6V
  • Float Charge Voltage: 54V
  • Cut-Off Voltage: 47V
  • Maximum Charging Voltage: 57.6V

Technical Specifications:

• 5.12kWh Ecco Lithium Battery 51.2V 100AH (W51100) Wall-Mount
• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Best Operating Voltage Range: 43V 54.5V
• Maximum Continuous Discharge Current: 100A
• Enclosure Protection: IP54
• Communication Protocols: RS485, RS232, CAN
• Design Life: 15 years
• Dimensions (Max Installation): 480mm x 170mm x 500mm
• Package Dimensions: 590mm x 290mm x 615mm
• Weight: 49kg

What's included in the Combo ?

• 2 x ECCO 5.12kWh 51.2V 100Ah Lithium Iron Phosphate Battery
• 1 x VITO 11KVA hybrid inverter MPPT
• 1 x Battery Cables
• 1 x User Manual

Warranty & Installation Requirements

• 5-Year Battery Warranty,

• 2-Year Inverter Repair Warranty

• Installation must be completed by a certified electrician registered with the Department of Labour. A valid Certificate of Compliance (COC) is mandatory for all installations. Warranty claims without a COC and proof of qualified installation will be considered void.
