11KVA / 11000W Ecco MPPT Hybrid Inverter Pure Sine Wave + 2x 5.12kWh Ecco Lithium Battery (Wall M...

11KVA / 11000W Ecco MPPT Hybrid Inverter Pure Sine Wave + 2x 5.12kWh Ecco Lithium Battery ( Wall Mount )

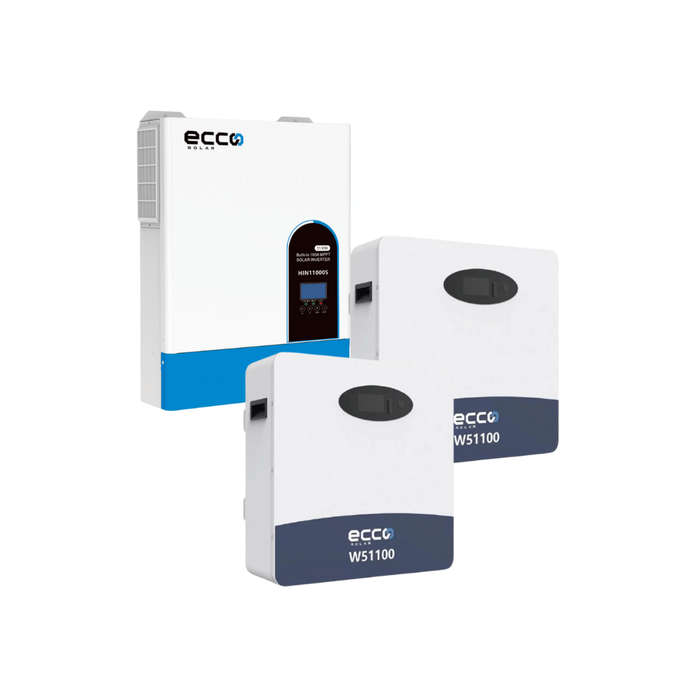

Combo Includes:

• 1x 11KVA Ecco Hybrid Inverter
• 2x 5.12kWh Ecco Lithium Battery

Inverter Specifications (HIN11000S)

Type: 11KVA / 11000W Ecco MPPT Hybrid Inverter (Pure Sine Wave)

Key Features:

• Built-in 2 MPPT
• Lithium battery activation via PV or Utility
• Compatible with LiFePO4 battery via RS485
• Power factor: 1.0
• Max PV Input: 500Vdc
• Built-in MPPT 160A
• Can operate without a battery
• Detachable dust cover for harsh environments
• WiFi remote monitoring (optional)
• Supports multiple output priority modes: SUB, SBU, SUF
• EQ function optimizes battery performance and extends lifespan

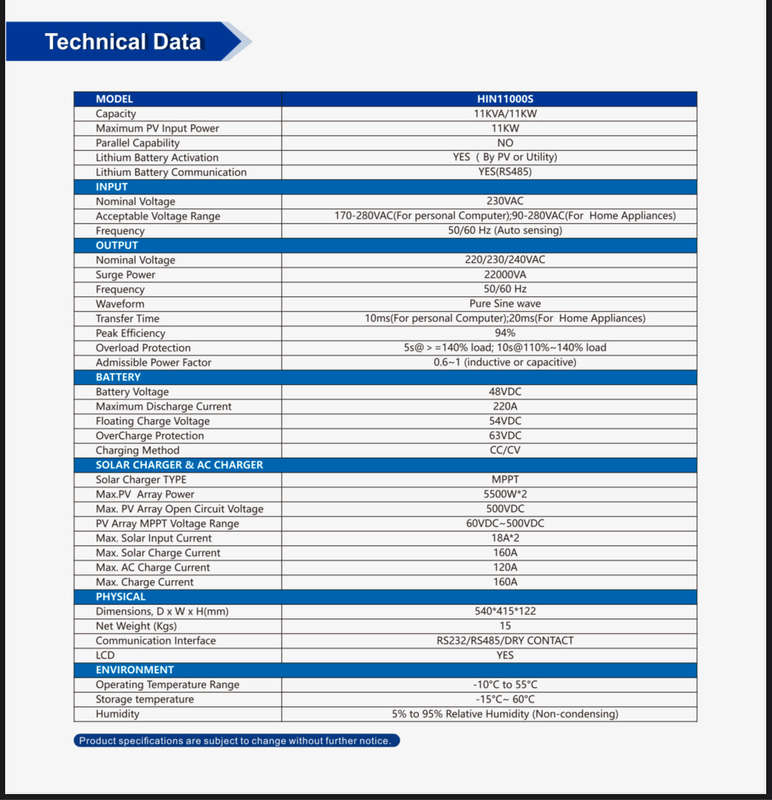

Technical Specifications:

• Capacity: 11KVA / 11KW
• Max PV Input Power: 11KW
• Parallel Capability: No
• Lithium Battery Activation: Yes (via PV or Utility)
• Lithium Battery Communication: Yes (RS485)

Input:

• Nominal Voltage: 230VAC
• Acceptable Voltage Range:
  • 170-280VAC (for personal computers)
  • 90-280VAC (for home appliances)
• Frequency: 50/60 Hz (Auto Sensing)

Output:

• Nominal Voltage: 220/230/240VAC
• Surge Power: 2200VA
• Frequency: 50/60 Hz
• Waveform: Pure Sine Wave
• Transfer Time:
  • 10ms (for computers)
  • 20ms (for home appliances)
• Peak Efficiency: 94%
• Overload Protection: 5s @ 140% Load

Battery:

• Voltage: 48V
• Max Discharge Current: 220A
• Floating Charge Voltage: 54VDC
• Overcharge Protection: 63VDC
• Charging Method: CC/CV

Solar & AC Charging:

• Solar Charger Type: MPPT
• Max PV Array Power: 5500W × 2
• Max PV Open Circuit Voltage: 500VDC
• MPPT Voltage Range: 60VDC - 500VDC
• Max Solar Input Current: 18A × 2
• Max Solar Charge Current: 160A
• Max AC Charge Current: 120A
• Max Charge Current: 160A

Physical & Communication:

• Dimensions (mm): 540 × 415 × 122
• Net Weight: 15kg
• Communication Interface: RS232 / RS485 / Dry Contact
• Display: LCD

Lithium Battery (Ecco 51.2V 100Ah 5.12kWh W51100 Wall-Mounted)

Key Features:
-Wall-mounted design easy to install and aesthetically pleasing
-Lithium Iron Phosphate (LiFePO4) cells safe, long life cycle
-Max 1C charge/discharge rate
-User-friendly interface
-Compatible with multiple inverter brands
-Supports up to 16 parallel groups
-Compliant with North American UL & EU TUV standards

Advantages:

• Longer Cycle Life: Up to 20× longer cycle life and 5× longer float/calendar life than lead-acid batteries
• Lighter Weight: ~40% of the weight of comparable lead-acid batteries
• Higher Power: 2× the power of lead-acid batteries while maintaining high energy capacity
• Wider Temperature Range: -20°C to 60°C
• Superior Safety: Eliminates risk of explosion or combustion from impact, overcharging, or short circuits

What's in the Box?

• Battery
• Battery Cables & Mounts

Battery Parameters:

• Battery Type: Set to "USE"
• Bulk Charge Voltage: 56.4-56.6V
• Float Charge Voltage: 54V
• Cut-off Voltage: 47V

Technical Specifications:

• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Total Power: 5.12kWh
• Best Operating Voltage Range: 43V - 54.5V
• Short Circuit Protection: Yes
• Power-on Reverse Connection Protection: Optional
• Max Charging Voltage: 57.6V
• Best Charging Voltage: 56.4V (Recommended)
• Max Continuous Output Power: 5500W
• Max Momentary Output Power: 7500W
• Local Parameter Configuration: Supported
• Max Installation Dimensions (mm): 480 × 170 × 500
• Package Size (mm): 590 × 290 × 615
• Weight: 49kg
• IP Class: IP54
• Communication: RS485, RS232, CAN
• Design Life: 15 years

Warranties & Installation Requirements

• 5-Year Warranty
• Installation must be performed by a qualified electrical wireman or Master Electrician with valid registration with the Department of Labour.
• A valid Electrical Certificate of Compliance (COC) must be issued after installation, specific to the backup or solar system.
• Installation must comply with SANS 10142 and all its parts.
• Warranty claims must include:
  • Installation photos
  • Valid COC
  • Proof of installation by a qualified wireman or Master Electrician
• Failure to provide the above may void the warranty.
