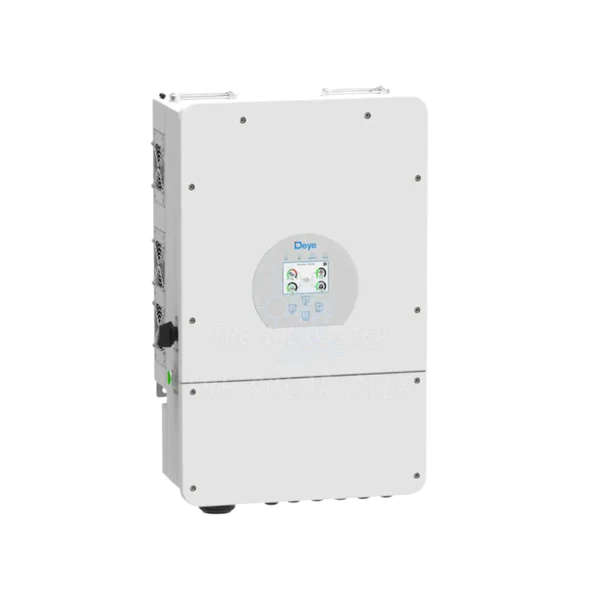

Deye 5KW Hybrid LV Inverter 48V / Dual MPPT +WiFi / IP65

Deye 5KW Hybrid LV Inverter 48V / Dual MPPT +WiFi / IP65

Description:

The Deye 5KW Hybrid PV Inverter is a high-performance energy solution designed for residential and commercial solar applications. With dual MPPT trackers and a high PV input voltage range (100V - 500V), this inverter efficiently captures and converts solar energy.

Its color touchscreen LCD display provides intuitive system monitoring, while WiFi connectivity enables remote tracking and firmware updates. The IP65-rated enclosure ensures durability, making it suitable for outdoor installations. Additionally, the inverter supports parallel operation for system expansion (up to 16 units), accommodating both single-phase and three-phase setups.

Key Features:

• 5KW Hybrid Inverter Ideal for grid-tied and off-grid solar systems.
• Dual MPPT Trackers Maximizes solar efficiency with an MPPT range of 125V - 425V.
• High PV Input Voltage (100V - 500V) Compatible with a wide range of solar panel configurations.
• Battery Compatibility Supports Lithium-ion (LiFePO4 / NMC) and Lead-Acid batteries.
• Flexible Power Management Configurable input priority (solar, battery, or grid).
• Parallel Expansion (Up to 16 Units) Scalable for higher power demands.
• WiFi Monitoring Enables remote performance tracking and system control.
• Low Noise Operation (<30dB) Suitable for home and office environments.
• Smart Cooling System Optimizes performance and longevity.
• Comprehensive Safety Protections Includes anti-islanding, surge, overcurrent, and short-circuit protection.

Technical Specifications:

General

• Model: sun-5K-SG01
• Rated Power: 5000W
• Maximum Output Power: 5500W
• Surge Power (Off-Grid): 2x Rated Power (for 10s)
• Weight: 20.5kg
• Dimensions: 330mm x 580mm x 232mm
• Ingress Protection: IP65 (Weatherproof)
• Cooling Method: Smart Cooling
• Noise Level: <30dB
• Warranty: 5 Years

AC Specifications

• AC Output Rated Current: 21.7A
• Maximum AC Output Current: 25A
• Maximum AC Continuous Passthrough: 35A
• Power Factor: 0.8 Leading to 0.8 Lagging
• Output Frequency: 50Hz / 60Hz
• Output Voltage: 220V / 230V / 240V (Single Phase)
• Current Harmonic Distortion (THD): <3% (Linear Load <1.5%)
• Maximum Efficiency: 97.6%

PV (Solar) Specifications

• Maximum PV Input Power: 6500W
• MPPT Voltage Range: 125V - 425V DC
• Full Load DC Voltage Range: 240V - 425V DC
• Start-Up Voltage: 150V DC
• Number of MPPTs: 2
• PV Strings per MPPT: 1
• Maximum PV Input Current: 13A + 13A

Battery Specifications

• Battery Voltage Range: 40V - 60V DC
• Supported Battery Types: Lithium-ion (LiFePO4 / NMC), Lead-Acid
• Maximum Charging Current: 120A
• Maximum Discharge Current: 120A
• Battery Charge Type (Lead-Acid): 3-Stage
• External Temperature Sensor: Optional
• BMS Communication: Yes (RS485 & CAN)

Safety & Protection Features:

• PV Input Lightning Protection
• Anti-Islanding Protection
• PV String Reverse Polarity Protection
• Insulation Resistance Detection
• Residual Current Monitoring
• Output Overcurrent & Short Circuit Protection
• DC & AC Surge Protection (Type II)

Installation & Expansion:

• Parallel Operation: Up to 16 Units
• Single-Phase & Three-Phase Compatibility: Yes
• Frequency Droop Control for Grid Stabilization
• Professional Installation Required Must be installed by a qualified professional.

What's in the Box:

• 1 x Deye 5KW Hybrid Inverter
• 1 x WiFi Dongle
• 1 x User Manual
• 1 x Network Cable (Battery Communication)
• 1 x External Lead-Acid Battery Temperature Sensor
• 2 x MC4 Connector Sets
• 4 x Expansion Bolts
